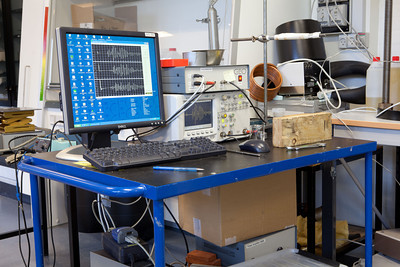

Compressional wave velocity Vp and shear wave velocity Vs are measured by recording the travel time of a transmitted ultrasonic wave through a sample of known length.
Travel time is calculated from the first break for P-wave and from the zero crossing for the S-wave. Overall accuracy of the measurement is 50 m/s for P-waves and 100 m/s for S-waves.
Elastic wave velocity measurement can be performed at variable axial, radial and fluid pressure condition. It can be combined with geotechnical and flooding tests.
Technical specifications
-
Waves: Compressional wave and two shear waves at perpendicular directions.
-
Frequency: 100 kHz to 1000 kHz.
-
Amplitude: 5 Volt
-
Stress level: 1 MPa to 50 MPa
-
Stress condition: Uniaxial, hydrostatic.
-
Temperature: 15°C to 25°C
-
Sample size:
